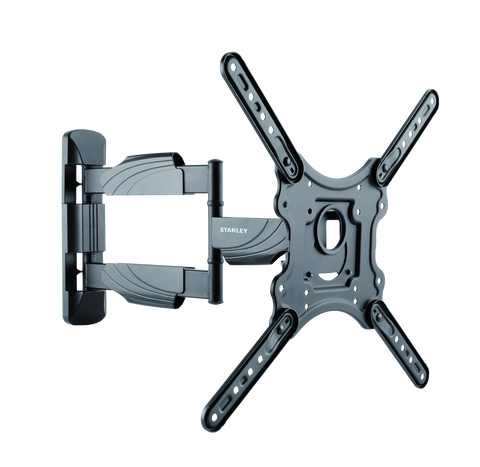

TMX-204FM DIY Pro series Med/Lg Full Motion TV Mount (23" - 55")

Stanley

TMX-204FM DIY Pro series Med/Lg Full Motion TV Mount (23" - 55")
Product Features
• Easy ability to adjust tilt without complicated tools or screws.
• Features several state of the art safety and security features.
• High performance for an affordable price.

Product Specifications
• Weight Capable: 77 lbs / 35 kg
• TV Size: 23” – 55”
• Depth: 2.3”
• Tilt Amount: +5˚ to -8˚
• Swivel: 180˚
• Extension: 20.2”
• Mounting Pattern: 100 x 100; 100 x 150; 200 x 100; 200 x 200; 300 x 200; 300 x 300; 400 x 200; 400 x 300; 400 x 400

​Technical Data
Suncraft Model#: TMX-204FM
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 12.2 lbs / 5.5 kg
Inner Box Size: (LxWxH): 12.6 x 15.3 x 2.4 in / 32 x 38.9 x 6.1 cm
Master Carton Size: (LxWxH): 13.5 x 15.8 x 15 in / 34.3 x 40.2 x 38.1 cm
Master Carton Net Weight: 75 lbs / 34 kg
Products Per Master Carton: 6
Master Cartons Per Pallet: 27

Box Contents
Instruction Manual QTY: 1

A (Wall Plate) QTY: 1
B (Extension RodQTY: 4
C (WrenchQTY: 1
D (ScrewQTY: 1
E (NutQTY: 1
A1 (M5x14QTY: 4
A2 (M6x14QTY: 4
A3 (M6x30QTY: 4
A4 (M8x30QTY: 4
A5 (M8x50QTY: 4
A6 (D5 WasherQTY: 4
A7 (D8 WasherQTY: 4
A8 (SpacersQTY: 8
A9 (SpacersQTY: 8
B1 (Wall ScrewsQTY: 4
B2 (Wall AnchorsQTY: 4
B3 (WasherQTY: 4


   Installation Guide    &   Measurements
