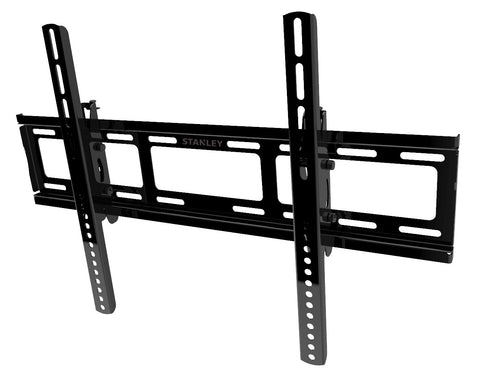

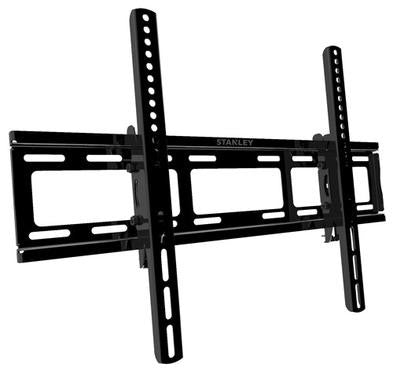

TLR-ES2215T Stanley Large Tilt TV Mount (37" - 70")

Designed and built for the large screens but with the ability to tilt easily without effort.
Features several state of the art safety and security features. This DIY Series from Stanley offers high performance, easy install capability and budget minded price.

Product Features
• Features several state of the art safety and security features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and safety.
• Tilting Mount for Large Size Flat Panel TVs
• Capability of handling 90 lbs
• Provides +12 degrees to -12 degrees of tilt along with easy and safe access to the rear of the TV.

Product Specifications
• Weight Capable: 90 lbs / 40 kg
• TV Size: 37” – 70”
• Depth: 2.4”
• Tilt Amount: 12˚ to -12˚
• Swivel: None
• Extension: None
• Level Correction: None

• Mounting Pattern: 100 x 100 up to 600 x 400
​
Technical Data
Suncraft Model#: TLR-ES2215T
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 5.6 lbs / 2.5 kg
Inner Box Size: (LxWxH): 26.4 x 6 x 3 in / 67.1 x 15.3 x 7.7 cm
Master Carton Size: (LxWxH): 27 x 18.7 x 7.3 in / 68.6 x 47.5 x 18.6 cm
Master Carton Net Weight: 15.5 kg / 34.2 lbs
Products Per Master Carton: 6
Cartons Per Master Pallet: 18

Instruction Manual QTY: 1
A (Wall Plate) QTY: 1
B (Level) QTY: 1
C (Right Bracket) QTY: 1

D (Left Bracket) QTY: 1
A1 (M4x25) QTY: 4
A2 (M5x25) QTY: 4
A3 (M6x25) QTY: 4
A4 (M8x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4
