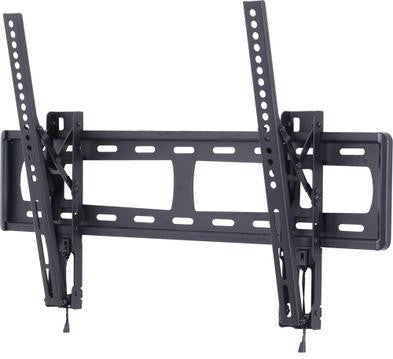

TLS-120T Premium Slim Large Tilt TV Mount (37" - 70")

The STANLEY® TLS-120T Tilt Mount is for larger Flat Panel TVs. The TLS-120T Tilt mounting system features a slim and sleek design for a clean and low profile appearance.

Product Features
• Designed and built for larger screens, but with the ability to tilt easily without the need to loosen screws or use of tools.
• Capability of handling 100 lbs
• Provides 12 degrees of tilt along with easy and safe access to the rear of the TV
• Made of high quality steel for ultimate rigidity and long lasting performance.
• The STANLEY®: “Magnetic Tab” system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.

Product Specifications
• Weight Capable: 100 lbs / 45 kg
• TV Size: 37” – 70”
• Depth: 1.5”
• Tilt Amount: +0˚ to +12˚
• Swivel: None
• Extension: None
• Level Correction: None

• Mounting Pattern: 100 x 100 up to 600 x 400

Technical Data
Suncraft Model#: TLS-120T
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 3.8 kg/8.4 lbs
Inner Box Size: (LxWxH): 28.4 x 6.4 x 1.8 in / 72.2 x 16.3 x 4.6 cm
Master Carton Size: (LxWxH): 29 x 9.3 x 7.3 in / 73.7 x 23.7 x 18.6 cm
Master Carton Net Weight: 44.31 lbs / 20.1 kg
Products Per Master Carton: 5
Master Cartons Per Pallet: 36
QTY Per 20’ Container: 4320
QTY Per 40’ Container (HQ):9600

Box Contents
Instruction Manual QTY: 1
A (Wall Plate) QTY: 2
B (Wall Plate Cover) QTY: 2
C (TV Rails) QTY: 2

D (Level) QTY: 1
A1 (M4x25) QTY: 4
A2 (M4x25) QTY: 4
A3 (M4x25) QTY: 4
A4 (M4x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4
B4 (Wall Plate Screw) QTY: 4
