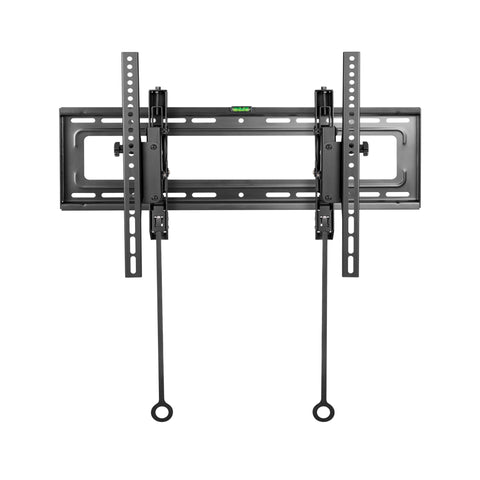

Product Features
• Designed and built for larger screens, while providing an extension function and easy to release secure solution.
• Configured to 16” and 24” Stud Systems for secure installation.
• Large wall bracket for accommodating wiring and power access behind the TV.
• Features several state of the art safety, security and adjustment features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and long lasting performance.
• The STANLEY®: “Magnetic Tab” system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.
Product Specifications
• Weight Capable: 155 lbs / 70 kg
• TV Size: 37” – 90”
• Depth: 3.1”
• Tilt Amount: +5˚ to -12˚
• Swivel: None
• Extension: Up to 5.3"
• Level Correction: None
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.
Product Specifications
• Weight Capable: 155 lbs / 70 kg
• TV Size: 37” – 90”
• Depth: 3.1”
• Tilt Amount: +5˚ to -12˚
• Swivel: None
• Extension: Up to 5.3"
• Level Correction: None
• Mounting Pattern: 200 x 200 up to 600 x 400
Technical Data
Suncraft Model#: TLX-6400ET
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 9.9 lbs / 4.5 kg
Inner Box Size: (LxWxH): 28.15 x 8.54 x 3.62 in / 71.5 x 21.7 x 9.2 cm
Master Carton Size: (LxWxH): 28.74 x 11.81 x 9.45 in / 73 x 30 x 24 cm
Master Carton Net Weight: 35.42 lbs / 16.1 kg
Products Per Master Carton: 3
Master Cartons Per Pallet: 18
Box Contents
TV Plate: QTY: 2
Wall Plate QTY: 1
Mount Installation Kit: QTY: 1
Instruction Manual: QTY: 1
Technical Data
Suncraft Model#: TLX-6400ET
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 9.9 lbs / 4.5 kg
Inner Box Size: (LxWxH): 28.15 x 8.54 x 3.62 in / 71.5 x 21.7 x 9.2 cm
Master Carton Size: (LxWxH): 28.74 x 11.81 x 9.45 in / 73 x 30 x 24 cm
Master Carton Net Weight: 35.42 lbs / 16.1 kg
Products Per Master Carton: 3
Master Cartons Per Pallet: 18
Box Contents
TV Plate: QTY: 2
Wall Plate QTY: 1
Mount Installation Kit: QTY: 1
Instruction Manual: QTY: 1
Installation Guide
Instruction Manual QTY: 1A (Wall Plate) QTY: 1
B (TV Brackets) QTY: 1
C (TV Brackets) QTY: 1
M-A (M5x14) QTY: 4
M-B (M6x14) QTY: 4
M-C (M6x30) QTY: 4
M-D (M8x30) QTY: 4
M-E (M8x50) QTY: 4
M-F (Washers) QTY: 4
M-G (Spacers) QTY: 8
M-H (Spacers) QTY: 8
W-A (Lag Bolts) QTY: 6
W-B (Wall Anchors) QTY: 6
W-C (Washers) QTY: 6
W-D (Bubble Level) QTY: 1
W-E (Hex Key) QTY: 1
Installation Guide & Measurements
